Room EQ and Crossfeed
Preview for UFX+, UFX II, UFX III, UCX II, 802 FS owners.
Room EQ and Crossfeed

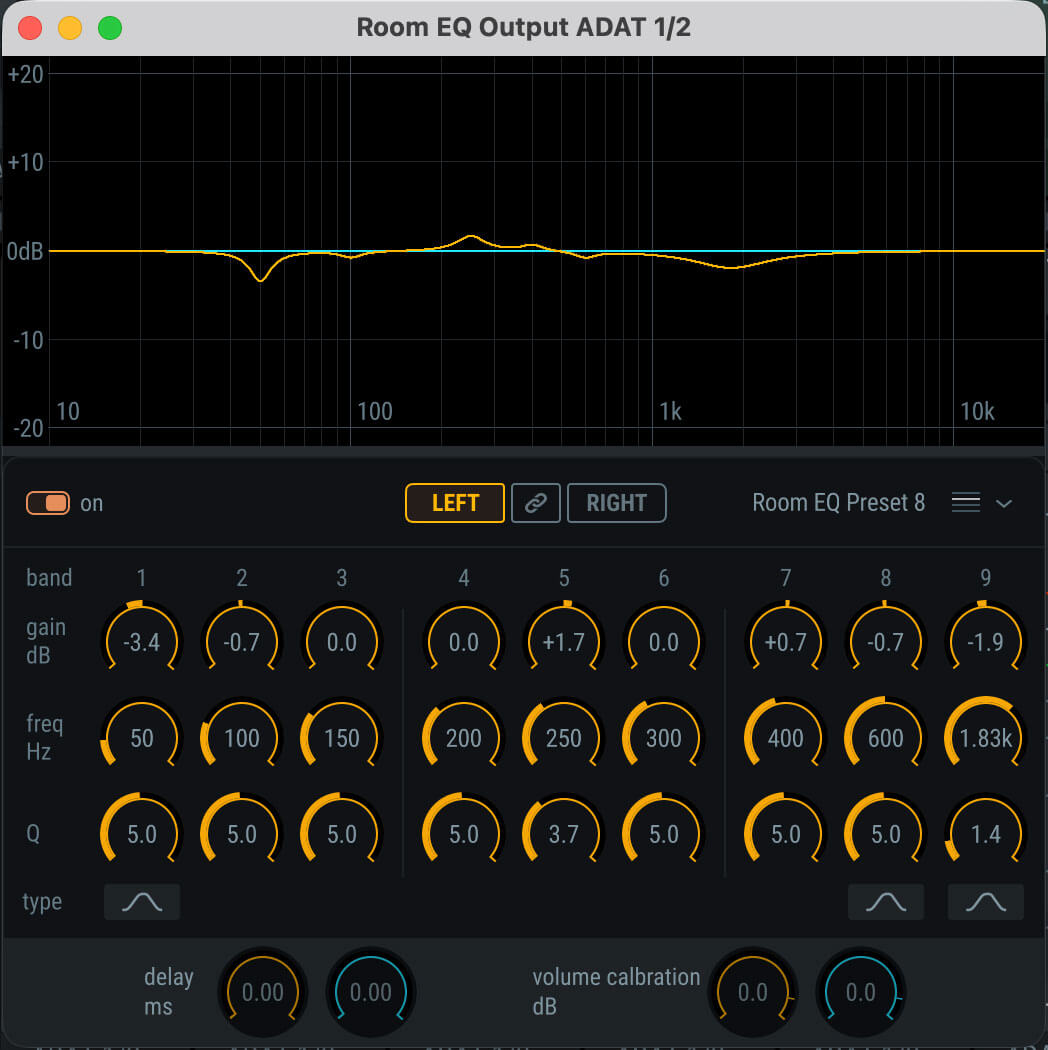

The maximum number of Room EQs is 20, so up to 20 mono output channels or 10 stereo output channels or any combination of these. That’s more than needed for a 16 channel surround setup.
Additionally the Room EQ window includes Delay, adjustable from 0 ms up to 42 ms, in steps of 0.01 ms. Up to 20 of these delays can be activated, matching the number of 9-band PEQs.
The Room EQ window also offers Volume Calibration through level adjustment from +3 dB down to -24 dB. This helps to set up all speakers in a usable way, without having to fiddle with the respective output channel’s fader.
The Room EQ button in any output channel’s Settings panel is lit when any of the functions in the Room EQ window are activated. For Delay that means not 0 ms, for VolCal not 0 dB.
On stereo channels the Room EQ window also includes channel selectors L, R, and both (Link symbol), to set the EQ curves as desired, individually or simultaneously.
The 3-band PEQ and 9-band Room EQ can be used at the same time, forming a 12-channel PEQ. Yet they are treated differently: The Room EQ is regarded as fixed speaker output setting, therefore not saved in Snapshots, but Workspaces. Also both PEQs have a Preset selector, but use individual files. The Presets in the Room EQ window include Delay and VolCal settings.
The Room EQ and Crossfeed are placed directly behind the 3-band PEQ, so they can be recorded via Loopback.
Crossfeed (stereo speaker emulation)

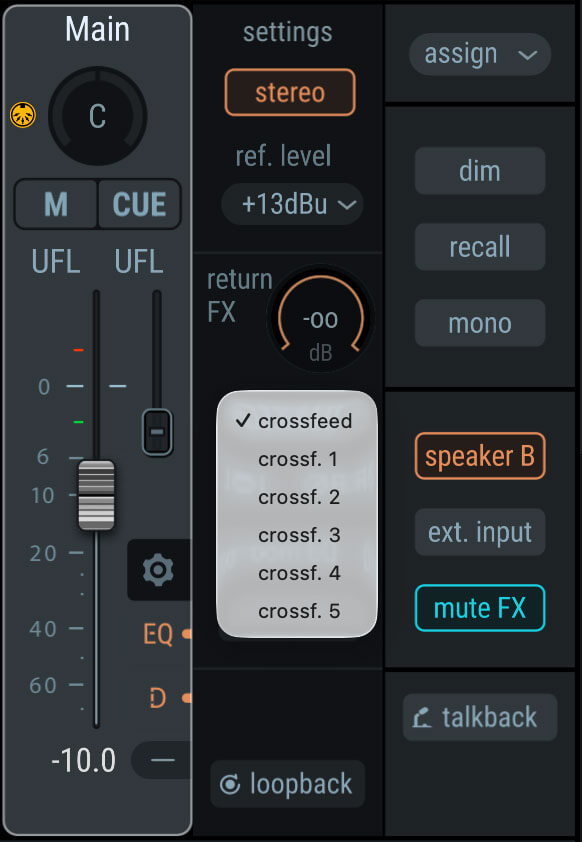

Finally, for headphone mixing and audiophilia, we also added the ADI-2 series’ Crossfeed function. As known from these devices Crossfeed can be selected in 5 ‘strenghts’, on a maximum of 3 stereo outputs. Crossfeed emulates speaker behaviour in terms of reduced channel separation, so the extreme wide ambiance often experienced with headphones is reduced a bit.
Room EQ for Dolby ATMOS
