We are the exclusive AUVITRAN distributor for the USA and Latin America.
AV Wall
PoE Dante wall boxes
Micro-sized & cost effective
Ultra Compact wall mounting Dante Interfaces
Input Modules

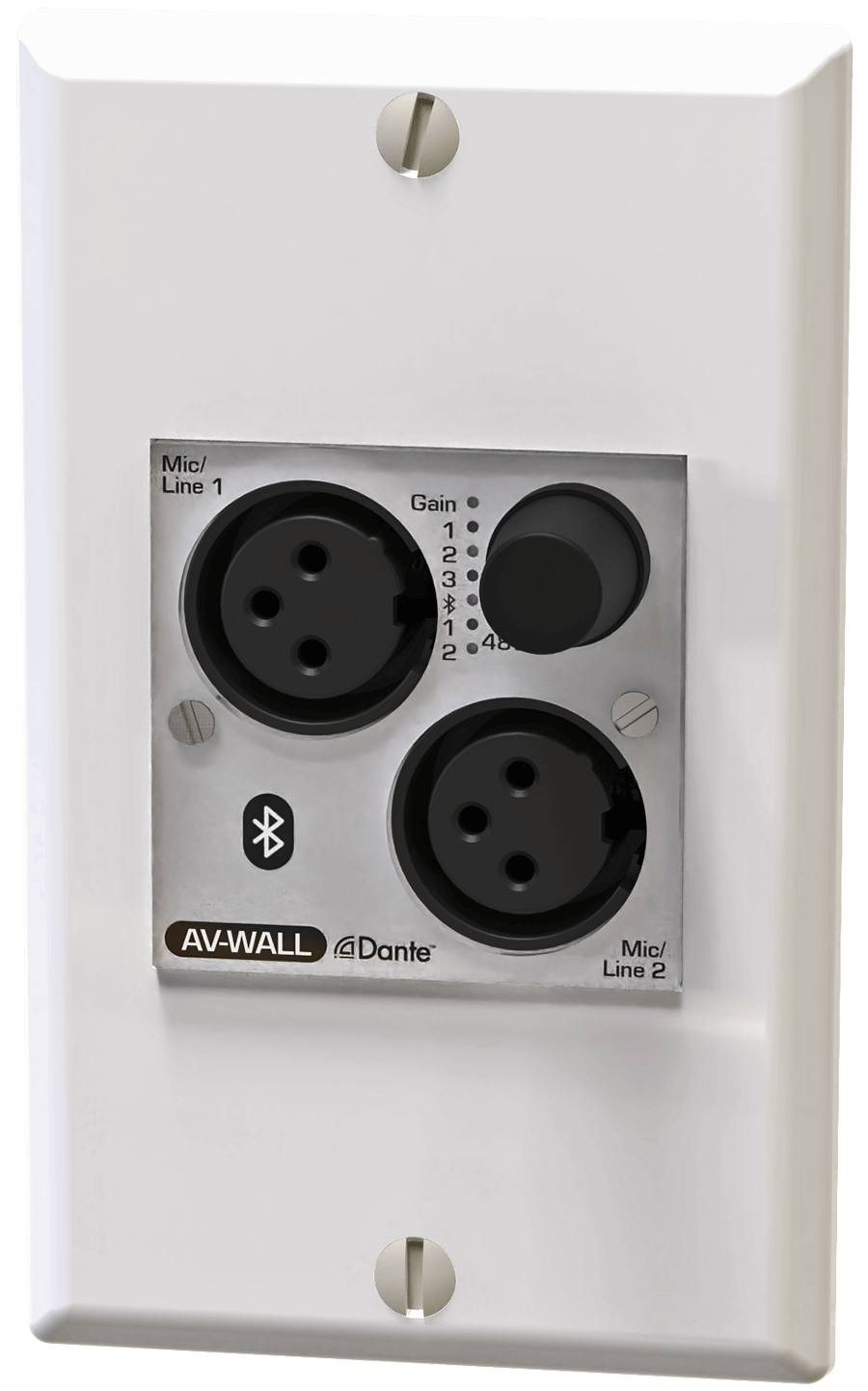

NEW! DT4i-B
Input module
- 2x XLR pro Mic / Line in
- Bluetooth stereo In
- Gain control
- white or black
- Power-over-Ethernet

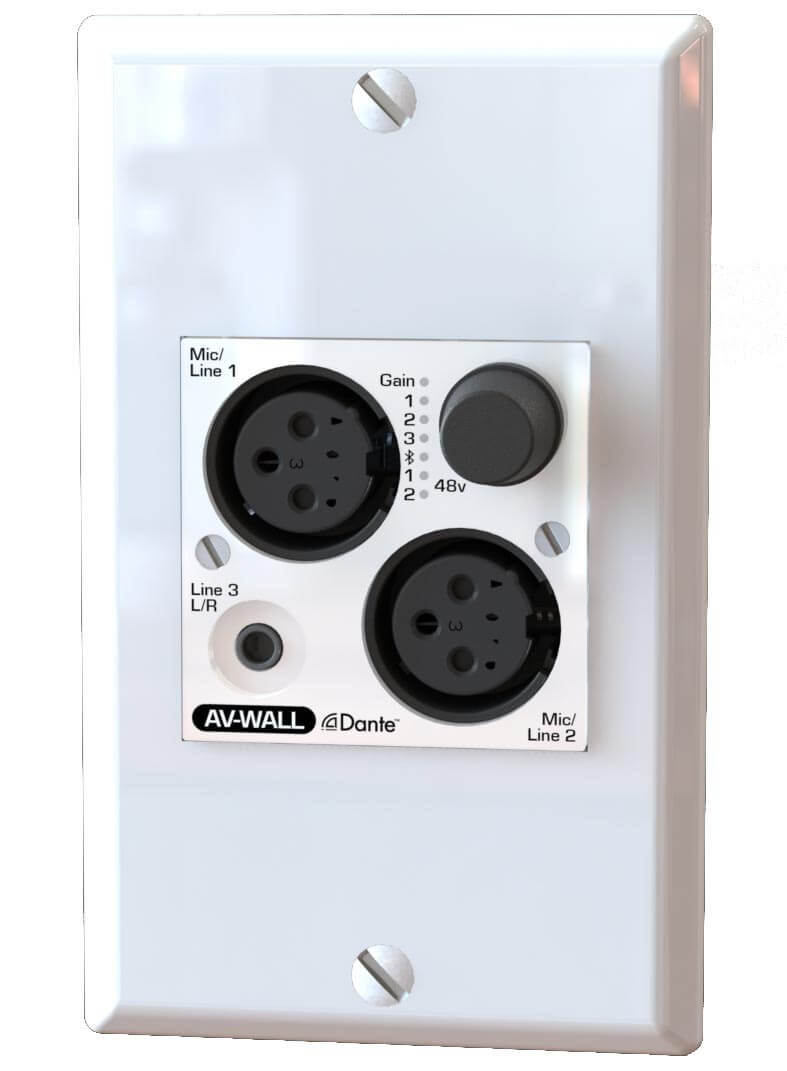

DT4i
Input module
- 2x XLR pro Mic / Line in
- Stereo Mini Line In
- Bluetooth stereo In (optional)
- Gain control
- white or black
- Power-over-Ethernet
Optional Bluetooth extension for AV-WALL-DT4i only:

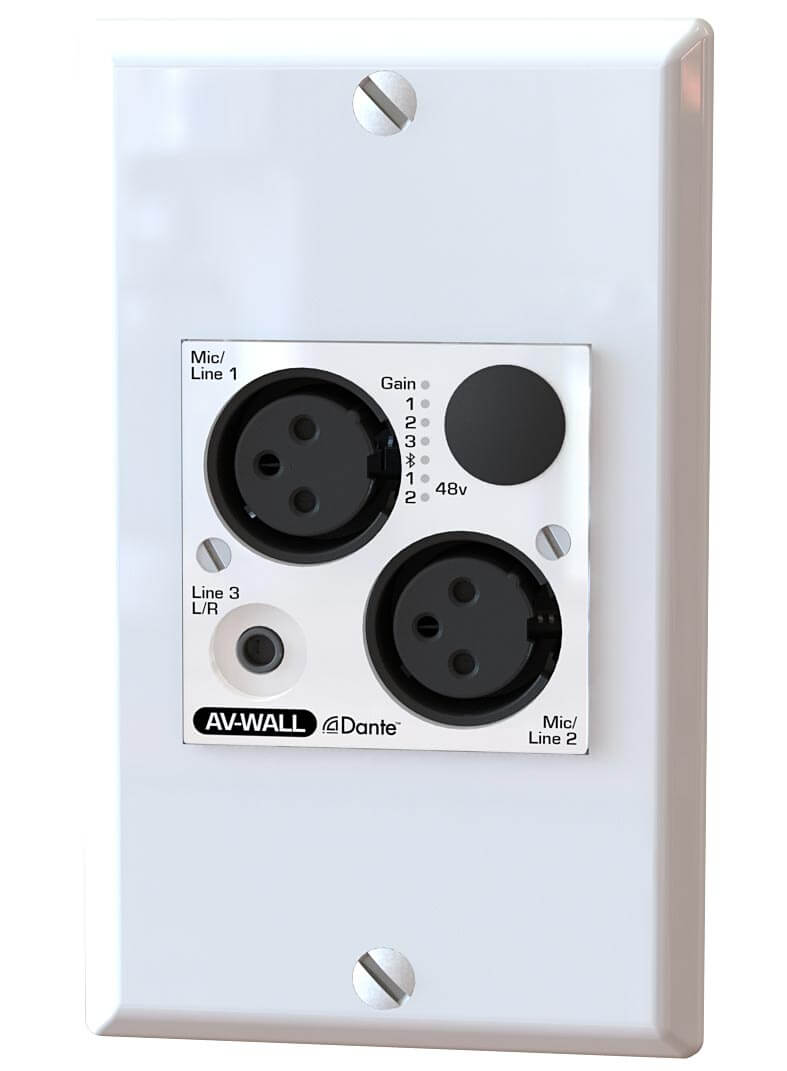

DT4i-LE
Input LE module
- 2x XLR pro Mic / Line in
- Stereo Mini Line In
- Bluetooth stereo In (optional)
- Power-over-Ethernet

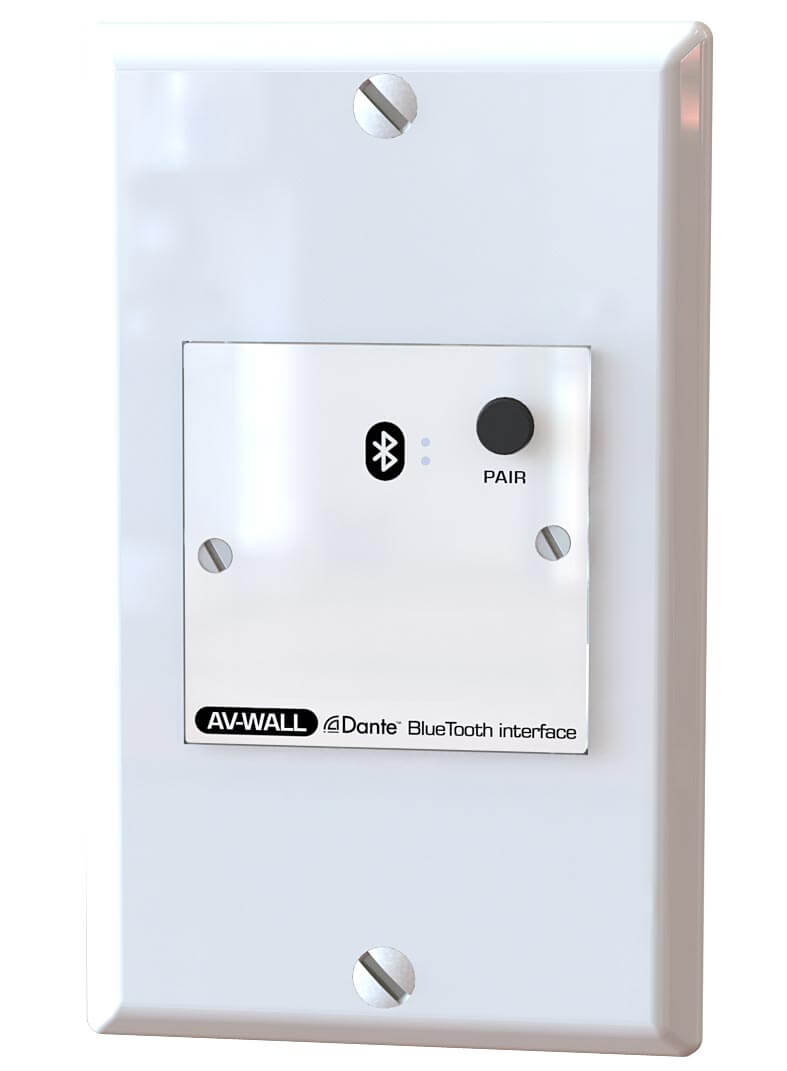

DT2i-B
Bluetooth input module
- Bluetooth stereo in
- Pairing button
Output Modules

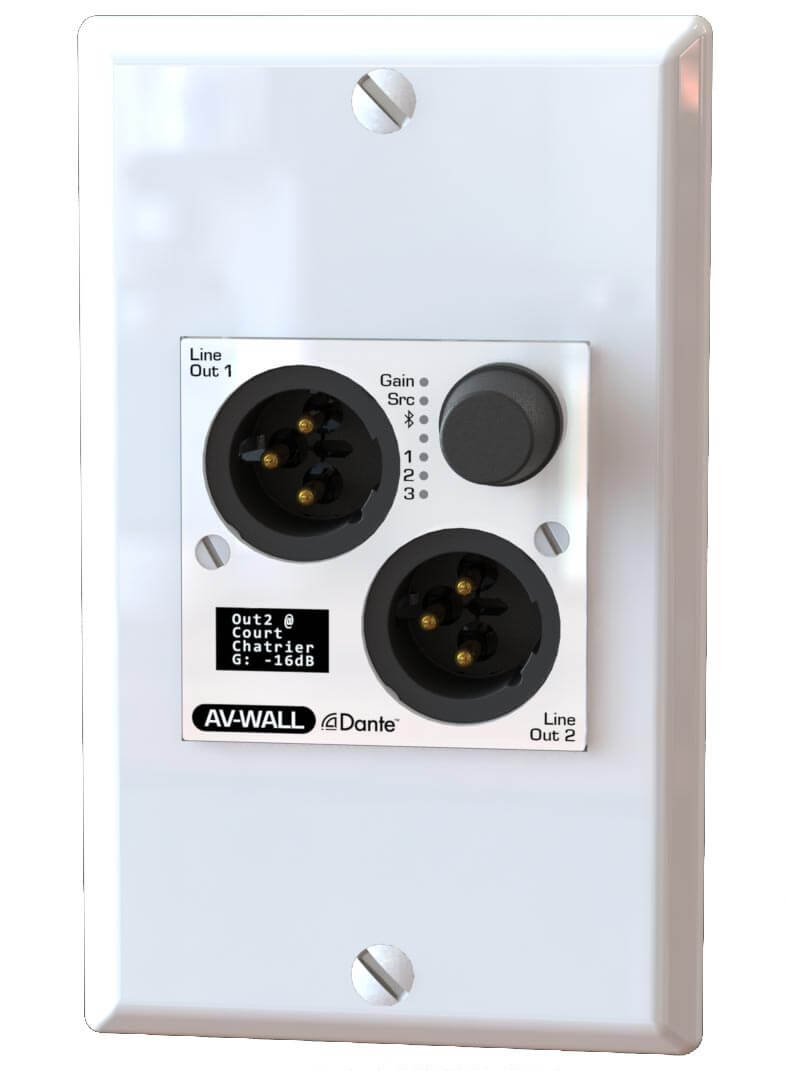

DT4o-B
Output module
- 2x XLR pro Line out
- Bluetooth stereo out
- Gain control / Source control
- OLED display
- white or black
- Power-over-Ethernet

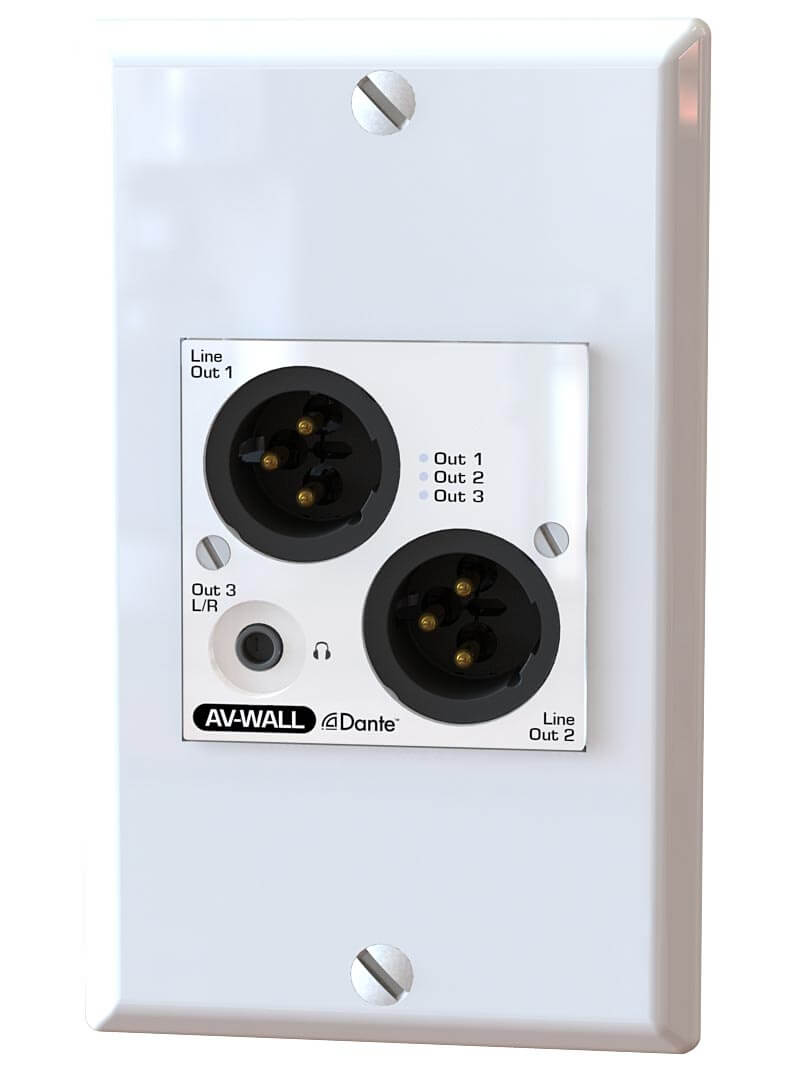

DT4o-LE
Output LE module
- 2x XLR pro Line out
- Gain control via software
- white or black
- Power-over-Ethernet
DT4i-B |
DT4i |
DT4i-LE |
DT2i-B |
DT4o-B |
DT4o-LE |
|
| Mic / Line In (XLR) | 2 | 2 | 2 | – | – | – |
| Stereo Mini Line In | – | 1 | 1 | – | – | – |
| Mic / Line Out (XLR) | – | – | – | – | 2 | 2 |
| Gain control | yes | yes | – | – | yes | – |
| Bluetooth Stereo | In | In (optional) | In (optional) | In | Out | – |
| Power-over-Ethernet | yes | yes | yes | – | yes | yes |
| OLED display | – | – | – | – | yes | – |
AV-WALL input modules
DT2i / DT4i-LE / DT2i-B
Wall mounted Dante Bluetooth or Mic/Line audio input interface
- 2x or 4x Dante channel transmitters
- 4x Internal input mixers (1, 2, L, R) on DT4i
- Remote or local controlling • Compact size – Fits into a single-gang junction box (45x45mm)
- RJ45 connector for power and control
- +48 V phantom power for Mic / Line inputs on DT4i
- PoE powered (802.3af compliant)
AV-WALL output modules
DT4o / DT4o-LE
Wall mounted Dante to analogue XLR outputs interface with stereo Bluetooth or minijack output
- Simple Bluetooth device pairing
- Remote or local controlling options
- Compatible with most known portable Apple and Android devices
- Fits into a single-gang junction box (Measures only 45x45mm)
- RJ45 connector for power and control
- 2 male XLR analog line out connectors
- OLED screen for direct Dante source selection
- Easy selection of pre-set Bluetooth channels
AV Wall setup example
AVS Monitor
- Controls all AUVITRAN devices in the network, including AVWALL modules
- Free Windows software
- Automatically detects AUVITRAN devices
- Conditional automation, e. g. trigger events
- Includes an internal matrix for all AUVITRAN cards

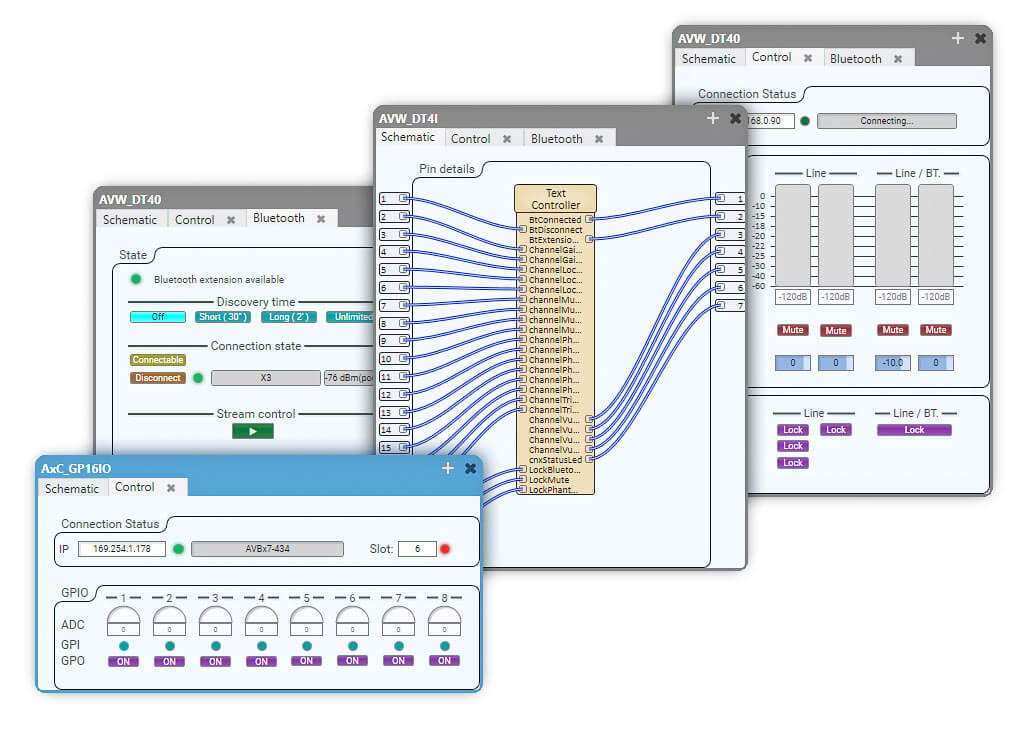

Q-SYS Plug-in support
AVWALL supports drag & drop plug-ins for the Q-SYS Designer Asset Manager.
This way AV integrators, programmers and consultants can integrate AVWALL wall boxes into the Q-SYS ecosystem, saving time and programming resources.
